JAW COUPLING HUB: L050 SIZE, 3/8" BORE
SKU: 94-020-0409Bore Diameter: 3/8"Length Through Bore: 0.625"Material: CNC sintered steelOuter Diameter: 1.10"Overall Length: 1.70"L Style: L050 SizeKeyway Size (W x D): No keyway
SKU: 94-020-0409
Bore Diameter: 3/8"
Length Through Bore: 0.625"
Material: CNC sintered steel
Outer Diameter: 1.10"
Overall Length: 1.70"
L Style: L050 Size
Keyway Size (W x D): No keyway
Manufacturer: RuggedMade
Part Number: L05038NK5
Product Weight: 0.12 lbs
L050 jaw coupling hub provides strength and support when connecting two rotating drive shafts.
Fits onto a 3/8" shaft
28.1 inch per pound rated torque
Made from CNC sintered steel
No lubrication required

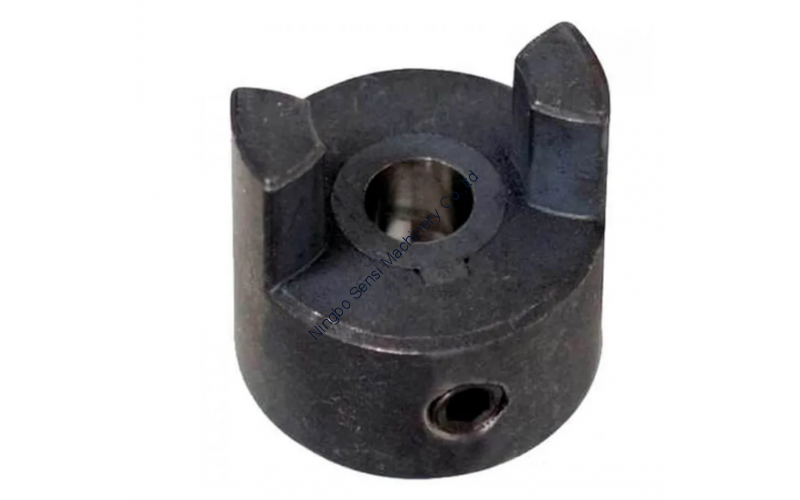

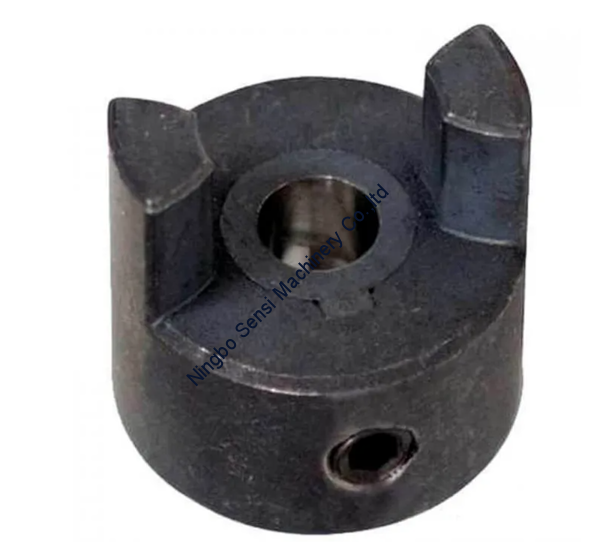

The image shown does not reflect the actual product dimensions.
NOTE: A complete coupling assembly requires two hubs and a rubber spider insert. All components are sold separately. To order additional components to create a complete L050 coupling assembly for your needs, see Related Products below.
Designed for connecting two rotating shafts, couplings are suitable for use in a wide range of applications, including power transmission to industrial equipment such as pumps, log splitters, gearboxes, compressors, blowers, mixers, and conveyors. These are the same couplings we use to direct-mount the engine shaft to the pump shaft on our RuggedSplit log splitters.
When ordering a complete set, use the chart below to match the shaft diameter to the coupling bore size.
To complete the coupling set, an oil-resistant synthetic rubber spider is inserted between the two coupling halves to provide an equalized cushioned drive. If provided, a keyway slot on the coupling helps to align the coupling to the shaft. Keys are not included. When mounting, do not pound on the coupling.
L050 SIZE COUPLING DETAILS
| Jaw Size | Bore Size (ID) | Keyway (W x D) | Rated Torque (Inch-Pound)) | Rated HP @ Varying RPM | Overall Length (Two Hubs) | Outer Diameter (OD) | ||||
|---|---|---|---|---|---|---|---|---|---|---|
| 100 | 300 | 1200 | 1800 | 3600 | ||||||
| L050 | 1/4" | No Keyway or Set Screw | 28.1 | .04 | .12 | .48 | .72 | 1.44 | 1.70" | 1.10" |
| 3/8" | No Keyway or Set Screw | |||||||||
| 7/16" | 1/8" x 1/16" | |||||||||
| 1/2" | 1/8" x 1/16" | |||||||||
| 5/8" | 3/16" x 3/32" | |||||||||
